$439,900

Description

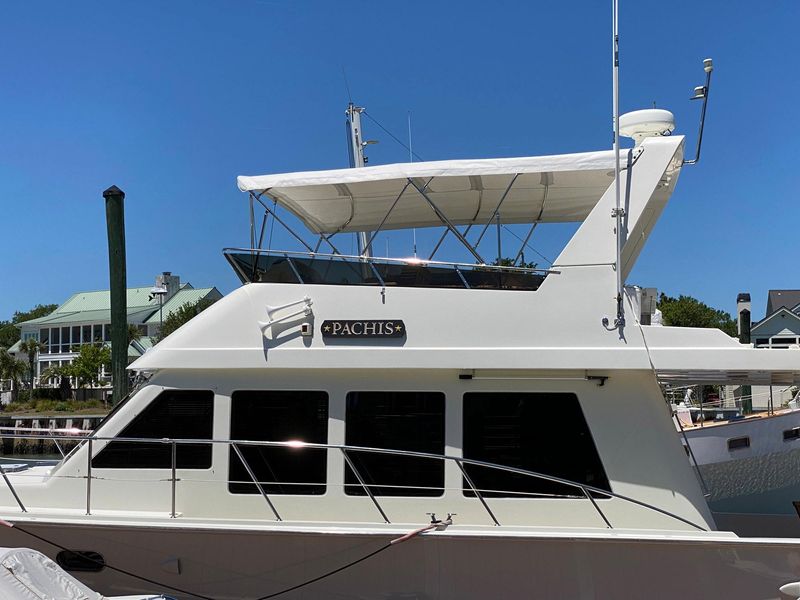

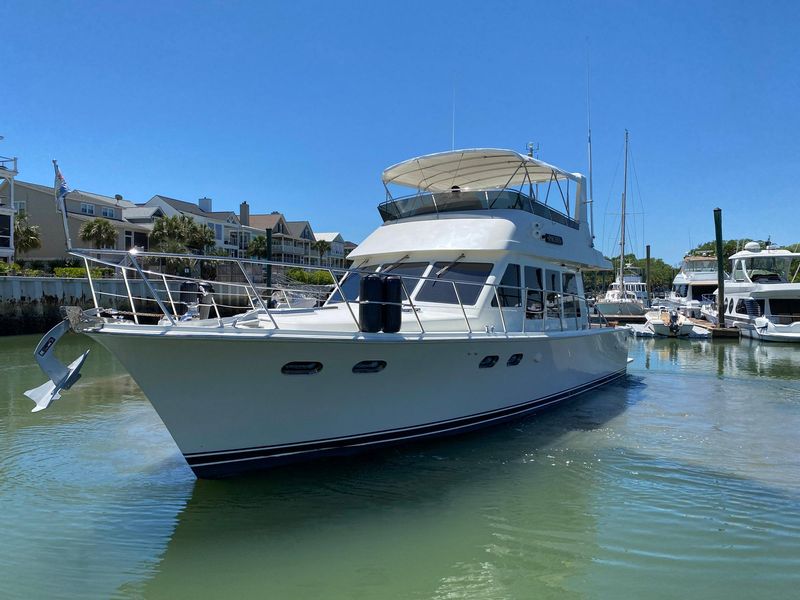

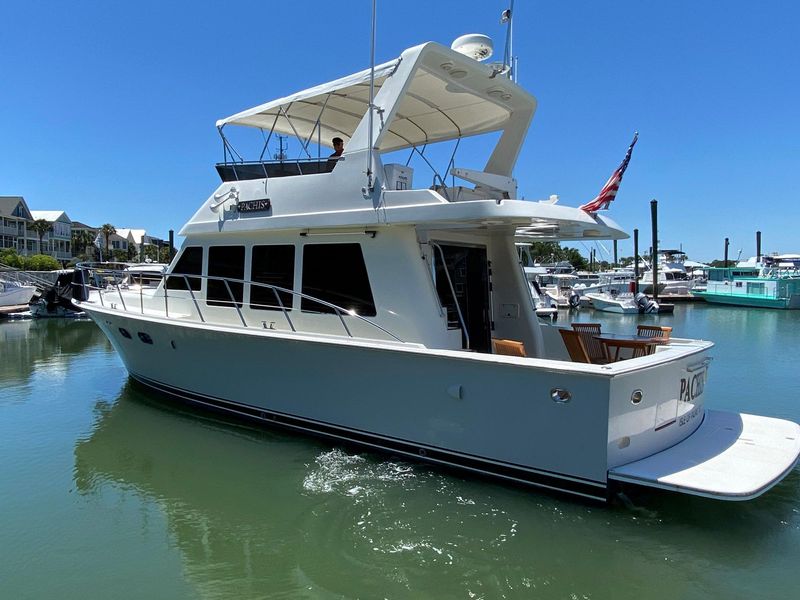

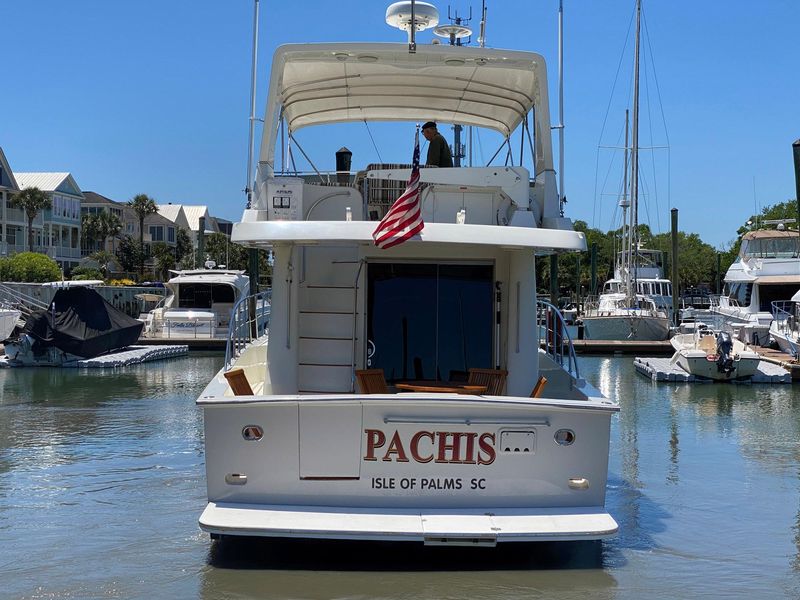

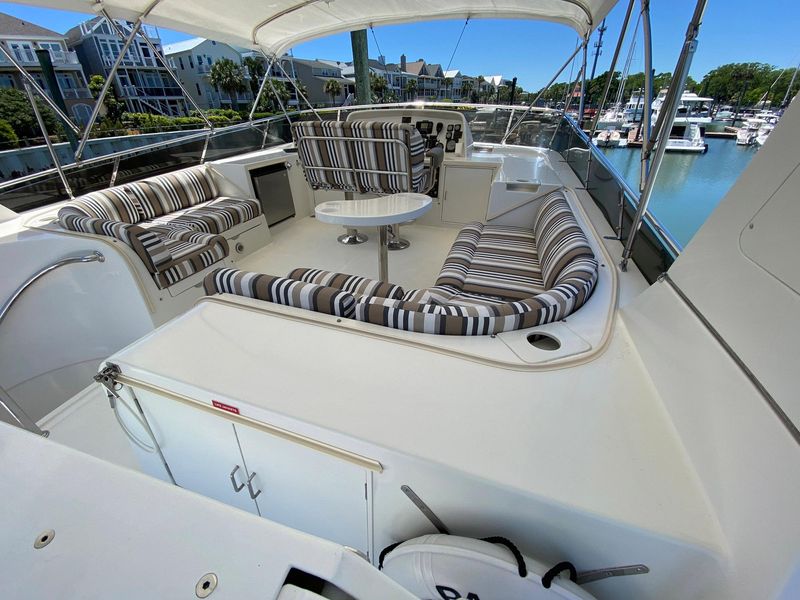

The McKinna 47 is a Taiwan-built sedan that’s conservative profile masks a surprisingly space-efficient interior. She rides on a conventional modified-V hull with a well-flared bow, a shallow keel for stability, and a relatively wide 15-foot beam. Her spacious galley-up floor plan is arranged with two staterooms, both with queen-size berths and built-in vanities, and two heads that share a common shower stall. An L-shaped sofa dominates the salon where the large, wraparound cabin windows provide excellent natural lighting and outside visibility. The interior is finished out in handcrafted maple woodwork. While the McKinna is clearly designed with cruising in mind, her large cockpit partially shaded by the bridge overhang is suitable for a couple of light-tackle anglers. Topside, the flybridge is huge with the helm forward and seating for eight.

RECENT UPDATES FALL 2023

1. Fresh bottom

2. Prop Speed

3. New trim tab hoses

4. New Injectors on Mains

5. New port oil cooler

6. New STBD aftercooler

7.  New oil hoses

8. both new airseps

9. Davit completely rebuilt

10. Engines and generator serviced

11. New AC strainer

12. Tender – new tubes, new bimini top, new full cover, engine service

Full Specs

Dimensions

LOA: 46.33
Beam: 15 ft
Maximum Draft: 3.83 ft
Displacement: 40,700 lb

Engines

Engine Brand: Cummins
Engine Model: 6BTA 5.9 M3
Engine/Fuel Type: diesel
Engine Power: 370|horsepower
Engine Type: Inboard

Engine Brand: Cummins
Engine Model: 6BTA 5.9 M3
Engine/Fuel Type: diesel
Engine Power: 370|horsepower
Engine Type: Inboard

Tanks

Fresh Water Tanks: 2 (110 Gallon)
Fuel Tanks: 1 (700 Gallon)
Holding Tanks: 1 (80 Gallon)

Accommodations

Number of cabins: 2
Number of heads: 2

• Hull Painted Awlcraft - 2000 color  in Greystone

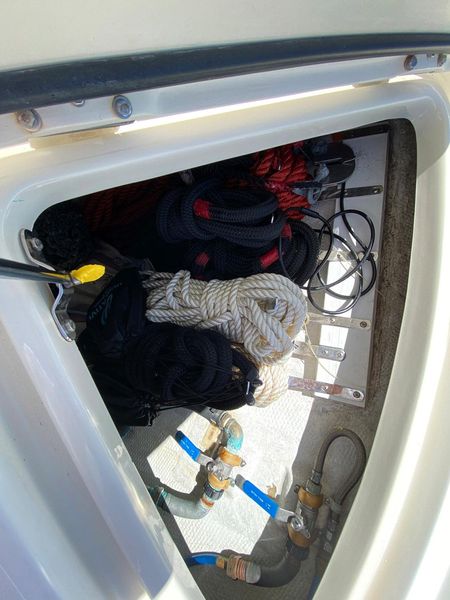

• Mantus 85# anchor with 200 ft. 5/16 G40 chain

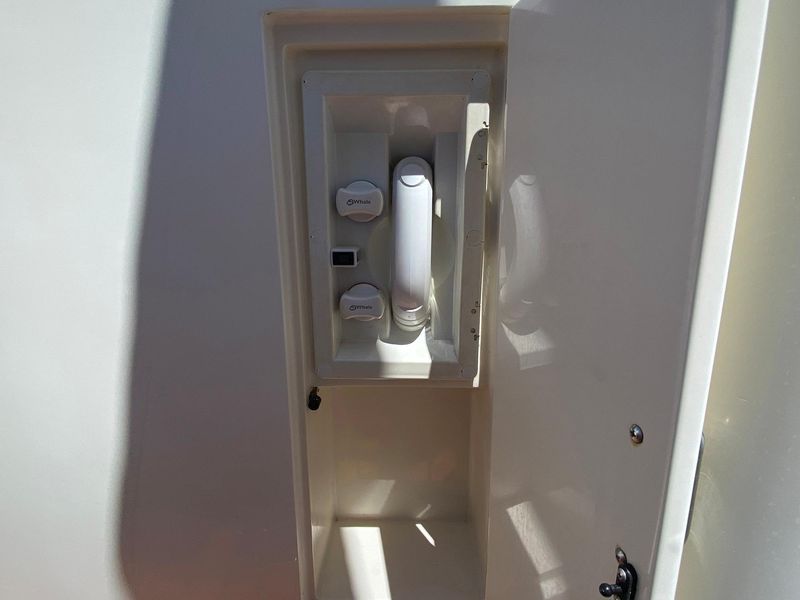

• Washdown hoses, fresh and raw at cockpit and anchor locker - separate 12v pump
• Transom shower - hot/cold
• Swim platform ladder - retractable & hidden under hatch
• Deck drains piped to waterline - no standing water
• Hatches and Portlights 316 SS by Manship
• Exterior covers:

1. Windshield tan Phifertex
2. Dinghy, white Stamoid
3. Flybridge sofas Sunbrella Grey Tweed - 2x
4. FB pilot chair Sunbrella Grey Tweed
5. FB instrument console Sunbrella Grey Tweed

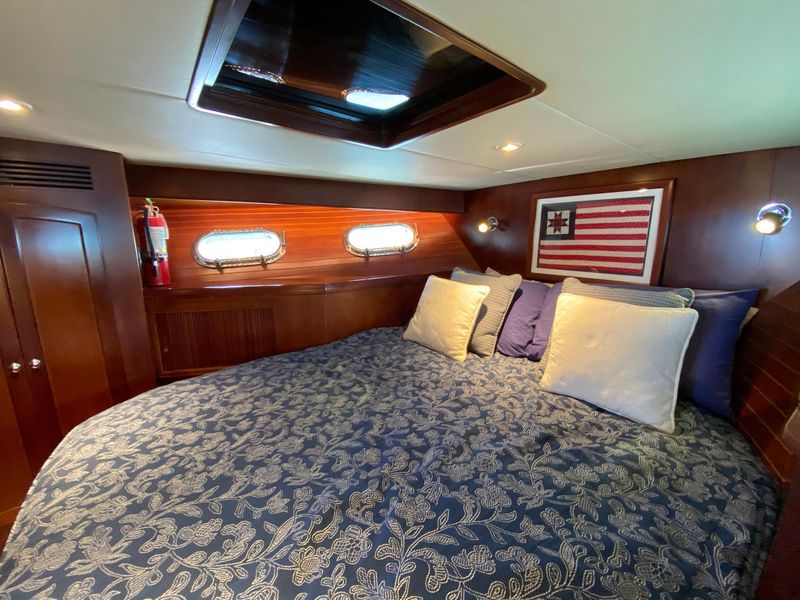

• Master centerline queen forward
• Guest bunks to port
• Flatscreen televisions in each statereoom
• Mattresses are all custom Handcraft

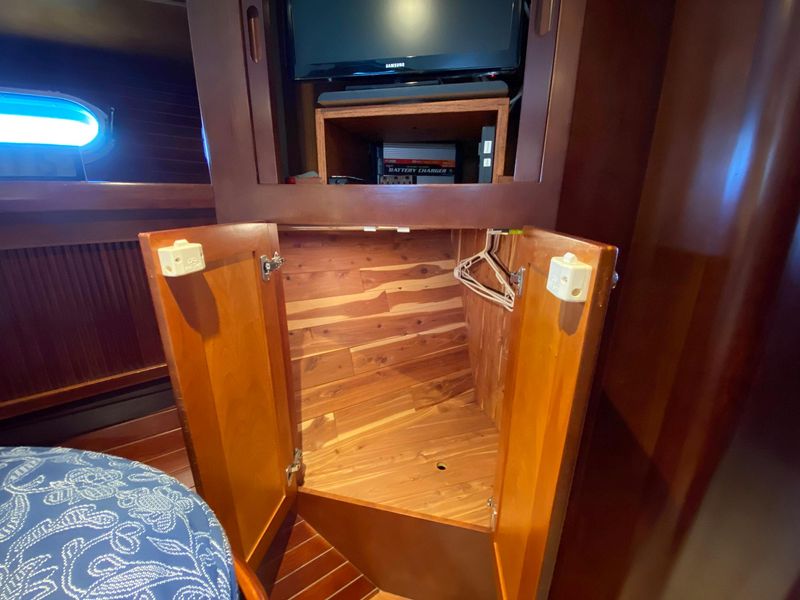

• Cedar lined clothes lockers w/12v auto lighting
• Two opening ports in each with removable insect screening and fabric deadlights
• Both staterooms feature opening hatches with retracting insect shields & sunshields
• Both staterooms feature accent LED rope lighting

• Jabsco Quiet Flush heads with fresh water
• Toilet blue water disinfectant injection system by Seasmart Marine

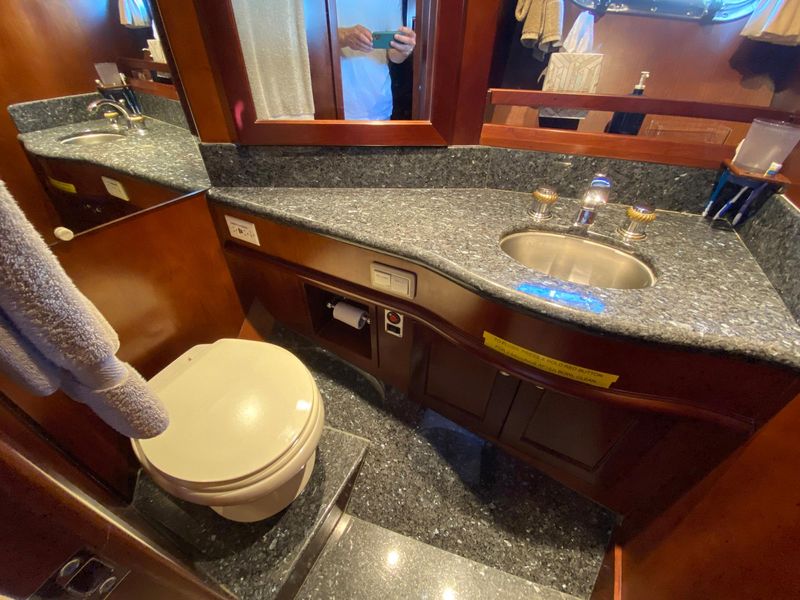

• Marble countertops and decks
• Brasstech Faucets and Shower Accessories
• Opening port in each
• Exhaust fans - 12v

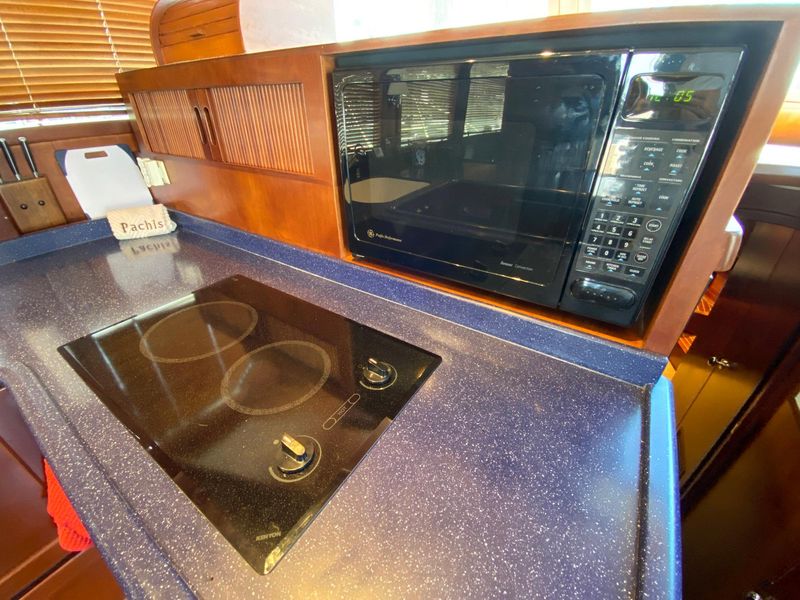

• Cooktop Kenyon 2-burner ceramic glass
• Microwave/Convection Oven, GE Model 1390GV
• Fresh water carbon filter w/spigot at galley sink
• Corian countertop & sink
• Exhaust fan - 12v
• Lazy Susan stowage
• Cutting board, pull out/wood
• Cockpit icemaker U-Line model BI-95 w/water filtration
• Flybridge refrigerator Edgestar Model CRF150SS

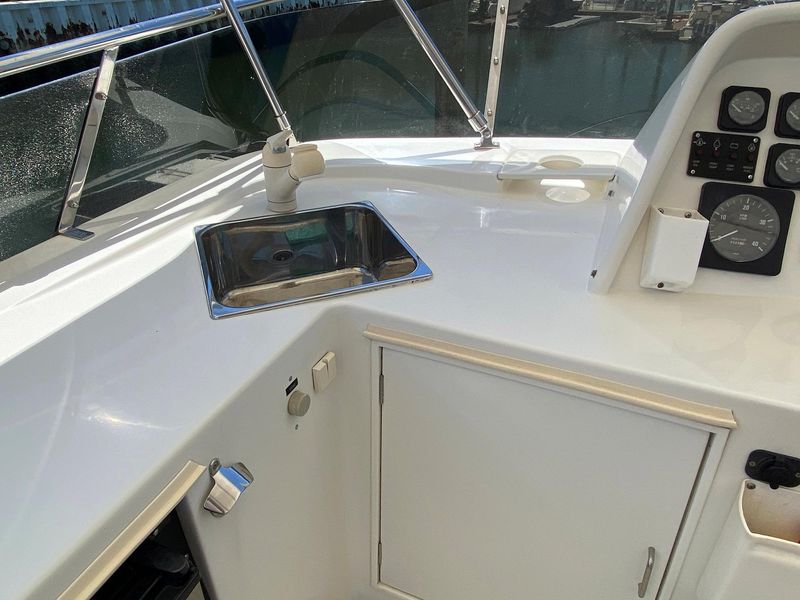

• Flybridge sink

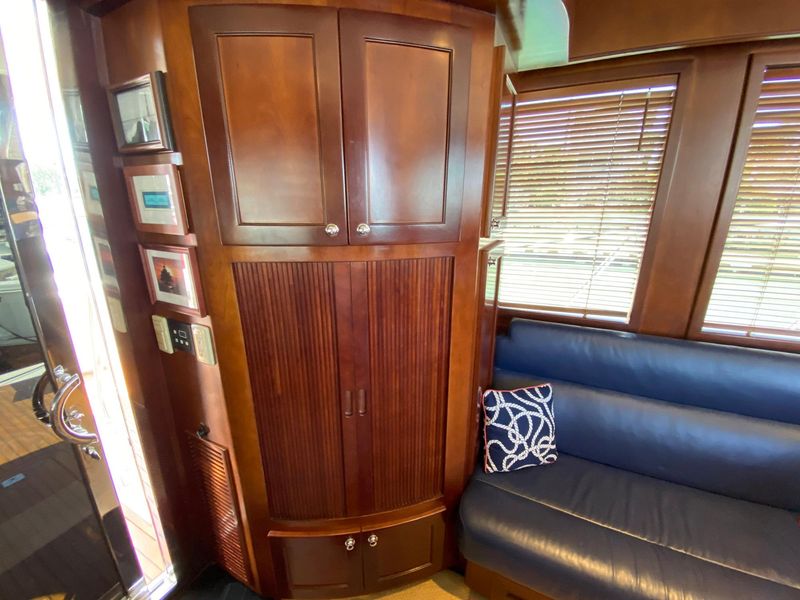

• Interior finish in satin cherry

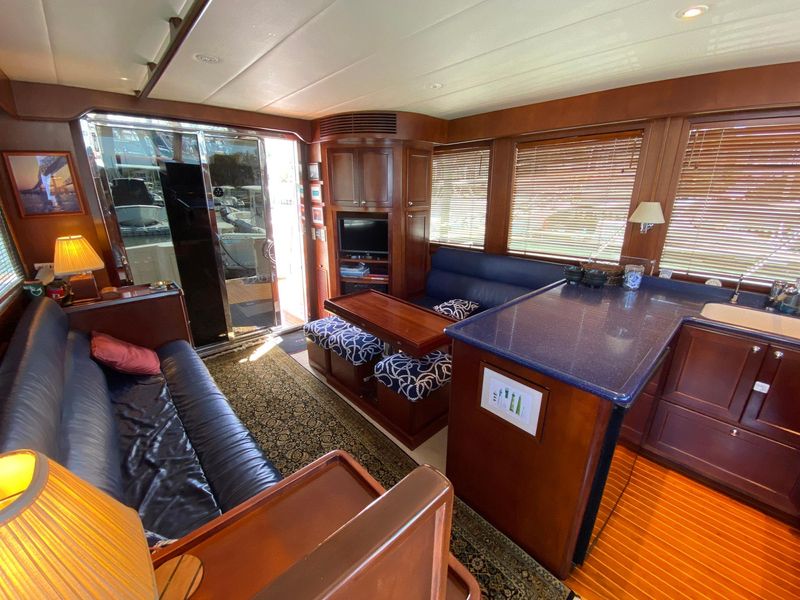

• High/low table with folding leaves
• Salon stools with stowage 3x
• Ultraleather salon sofas
• Twin bed pull out from salon stb-side sofa

• Flatscreen televisions through out
• Yamaha RX-V662 Audio Receiver
• Broadcast television amplified antenna, mounted on arch
• BOSE Acoustimass 6-5 channel system w/Polk subwoofer PSW111 salon speakers
• Cockpit Speakers POLY-PLANAR w/separate volume control
• FB Speakers POLY-PLANAR w/separate control

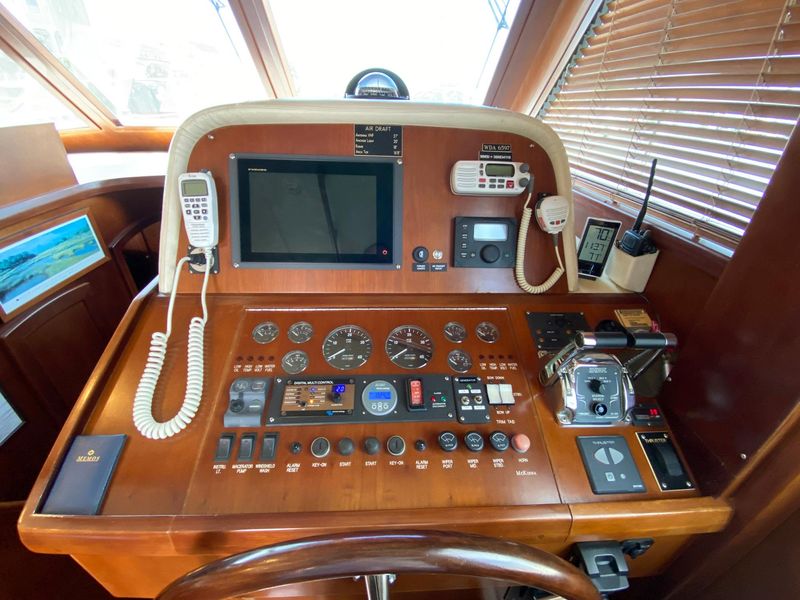

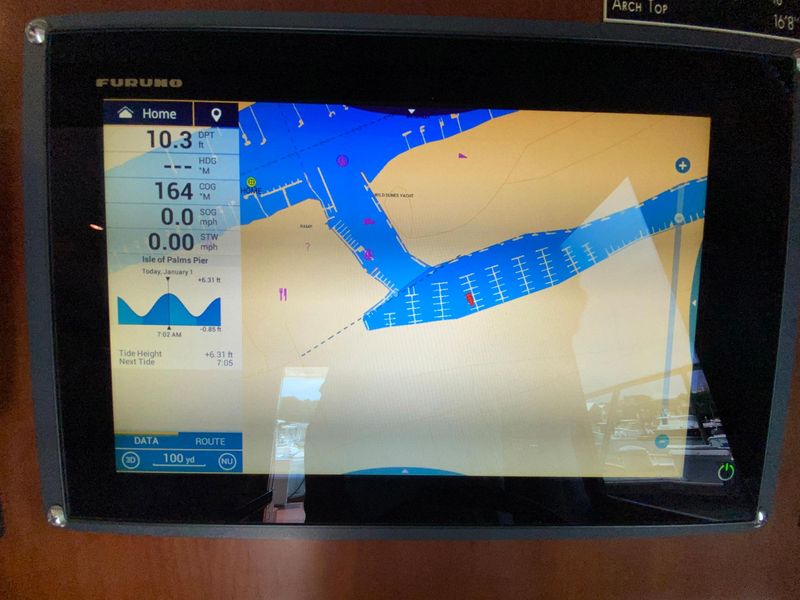

• Furuno TXTouch2, 12 inch MFD/Chartplotter MFD at both helms - new 2019
• Radar Furuno Model DRS4DNXT - new 2019
• Autopilot Robertson/Simrad J300X with AP22 control heads
• Rate compass for autopilots Simrad Model RFC35
• VHF transceiver Icom 506AIS at FB with remote at salon interfaced w/hailer speaker on arch
• VHF Transceiver STANDARD HORIZON GX1260S at salon w/remote control at FB
• AIS Transceiver Vesper XB 6000 w/antenna splitter Vesper SP160
• VHF antennas, Digital 532-VW-S 16 ft. -  2x
• NMEA Multiplexer Rose Point NEMO interfacing 0183 and 2000 and Wi-Fi
• Depth/speed/temperature transducer, AIRMAR DST800V
• Internet Connection via cell modem [T-Mobile 5G] combined Wi-Fi Router - connected to electronic navigation network via NEMO multiplexer
• Cell Phone Range Extender Wilson 801245 with wireless connection to phones
• Compasses - Ritchie Globemaster Model FB500 on FB, KVH Direct Read Azimuth 1000B at salon

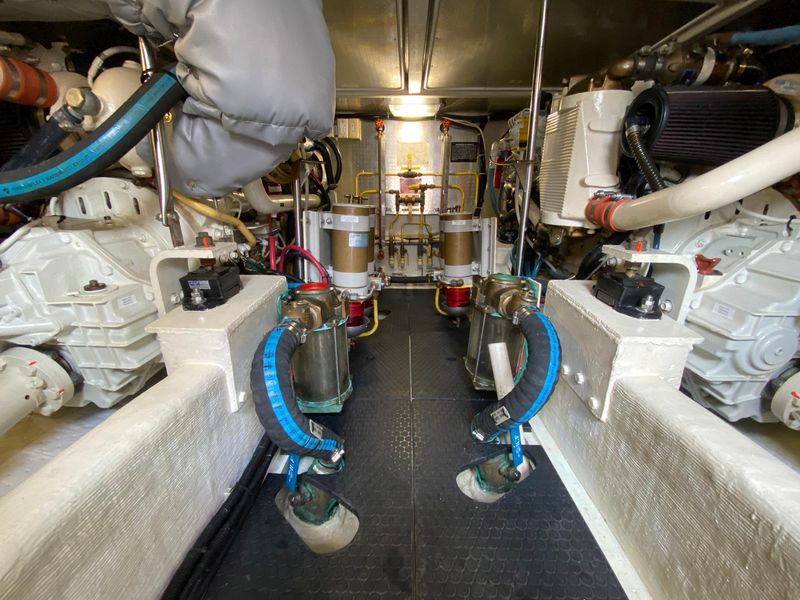

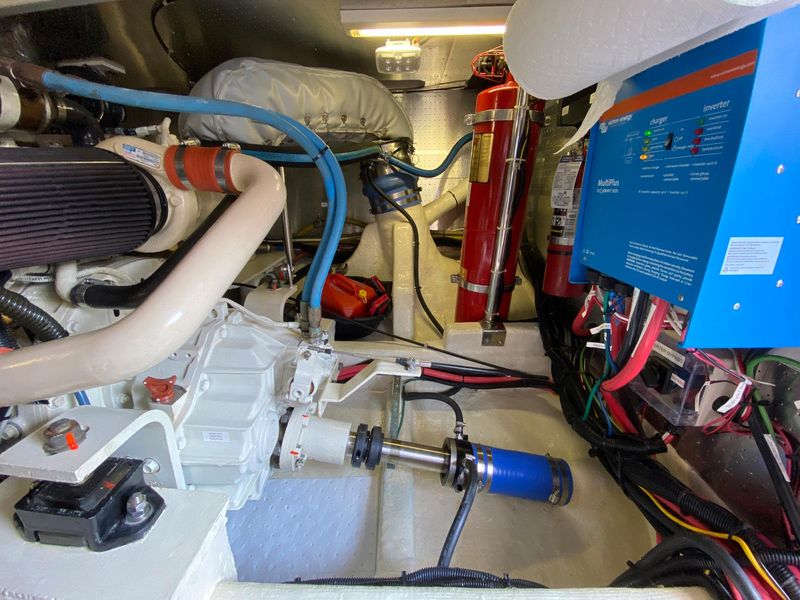

• Cummins BTA5.9M3, 370hp each- remanufactured by CUMMINS factory
• ZF Transmissions Model HSW 800 A2-2.5

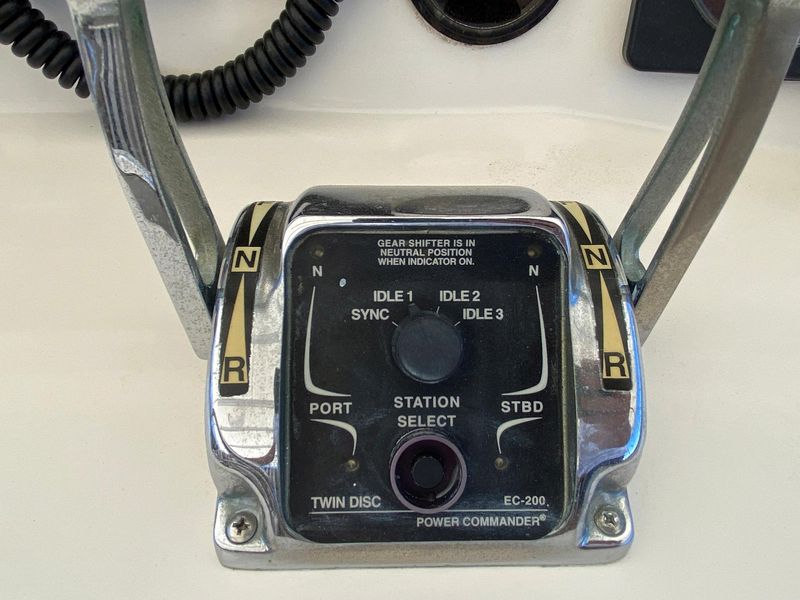

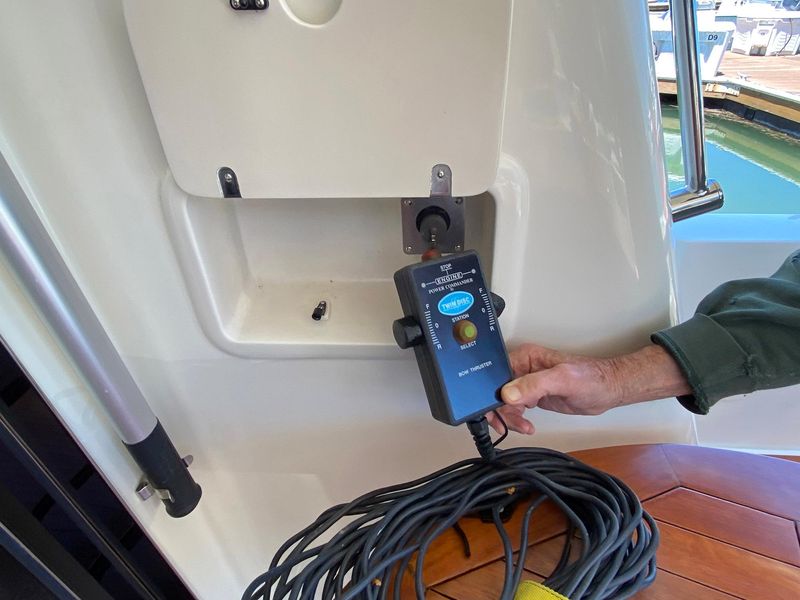

• Engine/trans Controls TWIN DISC ELECTRONIC EC200 with synchronizer; includes 3rd remote cabled control terminating at cockpit
• Generator Phasor Model K3-7.0 PMG 120v AC w/sound shield, remote control at salon station, water separator exhaust - new Feb 2022
• Fresh water injection ports on raw water inputs for both main engines and generator for flushing salt water cooling system after use

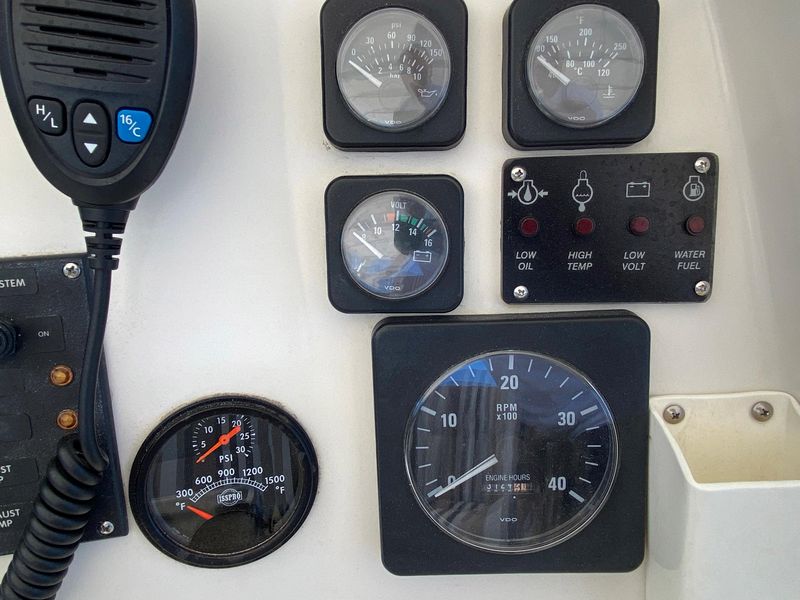

• Turbo boost/exhaust gas temperature gauges ISSPRO on FB to monitor main engine performance
• Main Engine Block Heaters 120v
• HVAC Marineair Reverse Cycle A/C split units, 16k BTU, 120v w/PASSPORT controls
• Bow Thruster, Vetus 160, 24v AGM spiral-wound batteries
• Dripless shaft seals Tides Marine model SS2000
• Dripless rudder shaft seals Tides Marine model URB-LP-2000-00
• Shaft/propeller line cutters Spurs model D
• Propellers 4 blade 28 X 24.7 - MnBr on 2 in. shafts
• Dinghy Davit UMT 1,000lb, 12v DC winch with extending arm
• Trim Tabs Boat Leveler, 10 in X 50 in, controls at both helm stations

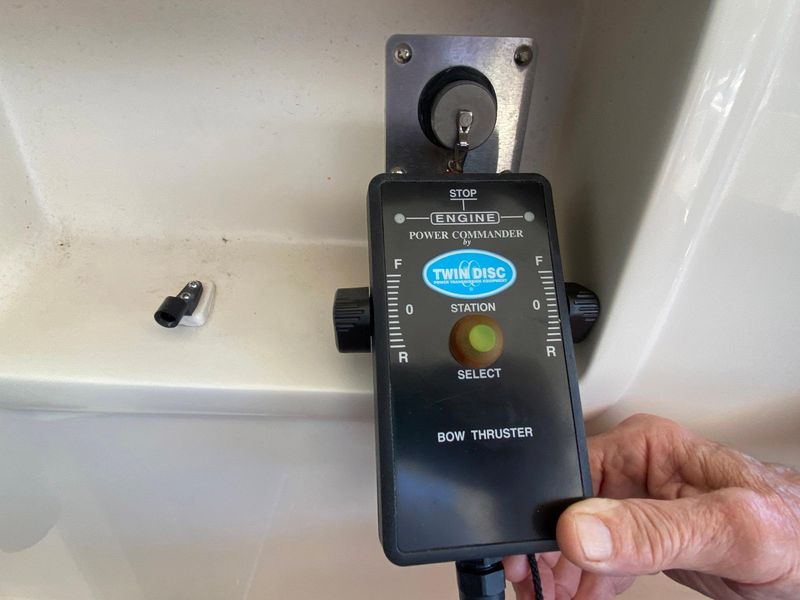

• Dockmate remote handheld wireless control for throttles/transmission/thruster/horn; Twist2/Twist433 System allowing complete control with single knob

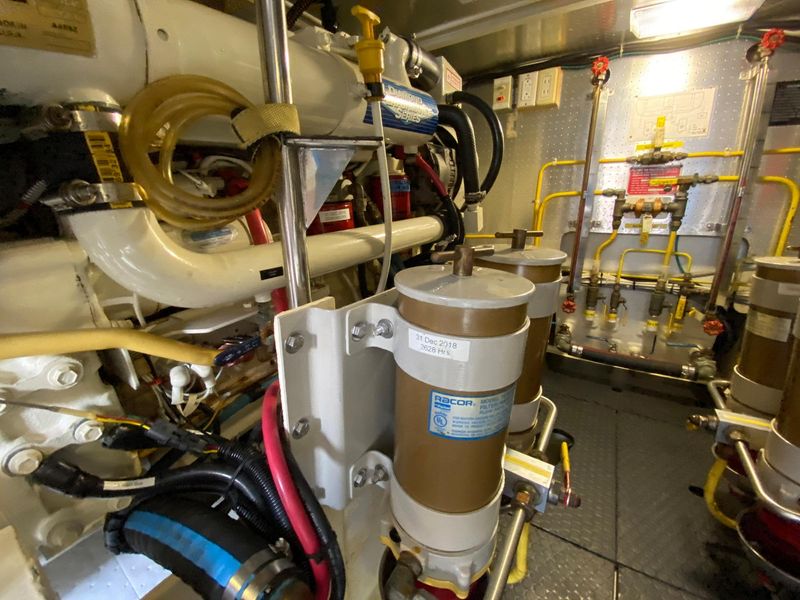

• Racor fuel filtration 75/1000P duals at mains, 500MA at generator
• Anchor Windlass MAXWELL VWC2200 w/controls at FB, salon and foredeck
• Oil exchange system for mains and generator  - 12v
• Water Heater Raritan 20 gallon 120v
• Fresh Water Pump Groco ParJR, 12v
• Black water tank 80gal fiberglass with Tankwatch level display
• Fresh water tanks 110 gallon - 2x translucent polyethylene
• Diesel Fuel Tank, 700 gal, Aluminum, single tank with separator
• Fresh water usage meter Watermeter at salon
• Fresh Water Pressure Regulators 2 ea at cockpit [for shore water direct-take]
• Overhead lighting in engine and lazarette - 12v and 120v
• Exhaust Fans - Lazarette and ER 2x - 12v
• Systems, piping & cabling extensively labelled

• Bow thruster battery charger, Victron Centaur 24v charger w/Bluetooth remote controls
• Inverter/Charger Victron 3kw 120v AC, 120 amp DC
• Inverter/charger remote control Victron Digital Multi Controller at salon
• Shore power inputs at transom exterior 2x 120v AC 30 amp
• Shore power Smart Plug connections
• Shore power cables, 4x 50, 4x 30, 2x splitter 50amp/240v to twin 30amp/120v
• Galvanic Isolator Promarine Failsafe
• Alternators on main engines, re-worked small frame, 140amp 12v DC, include ZAP STOP protection
• Alternator Regulators Balmar Model 614 2x w/temperature correction for batteries and temperature protection for alternators
• Centerfielder Balmar to balance alternator loading
• Battery monitor Victron BMV-602 at salon
• Battery House - Fullriver 8D AGM 12v 260AH ? 5x New Jul2021
• Battery Starting - Fullriver 8D AGM 12v 260AH - new Jul2021
• Battery Generator - Westmarine Group31 AGM - new Mar2022
• Battery Bow Thruster - Optima D31M 12v [series 24v] 75AH 2x - new Jul2021

• Bilge Pumps Rule 10 12v - 4x
• Bilge Pump counter/recorder w/alarm, Celectron BW8 for each pump
• Fireboy ER Halon automatic extinguisher MA2-FE24 w/manual activation at salon
• Alarm system in addition to Cummins alarms - bilge pump extended operation, ER fire, high engine exhaust temp at both control stations
• Emergency bilge pump at lower helm
• Horn Buell dual trumpet w/12v DC compressor
• CO Detector Xintex CMD-3M in master stateroom
• Smoke alarm in companionway
• Handheld extinguishers (professional-type)- 5x, professionally inspected (not Kiddie), located in lazarette/ER/Salon/both staterooms
• Lifesling Man Overboard with block and tackle recovery system
• Life ring w/light
• Emergency Tiller w/thru-cockpit deck access plate
• EPIRB - ACR
• Personal Locator Beacon Beach - ACR
• FCC radio call sign WDA6597

• Wireless full duplex headset Eartec for crew communications during maneuvers
• Washer/Dryer [vented] Splendide Model WDV2200XCD - new Mar2022

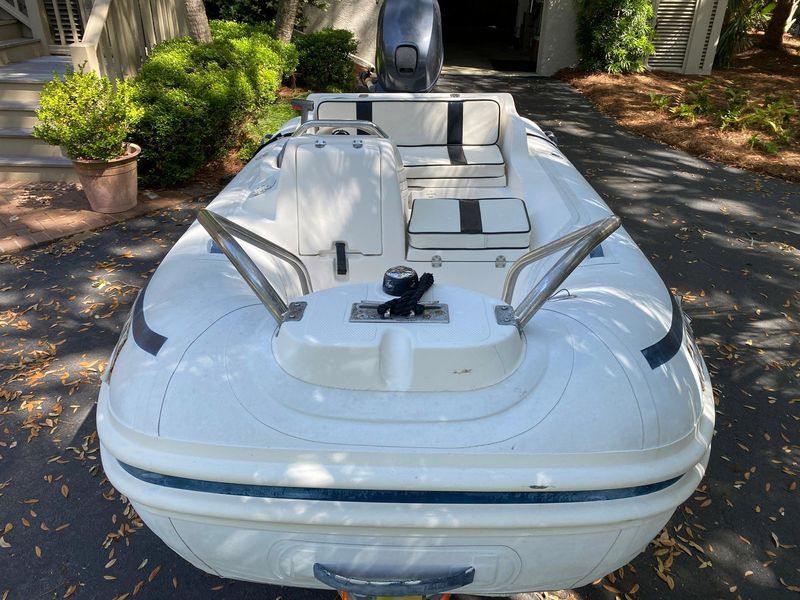

• Dinghy AB Nautilus DLX 11 ft.

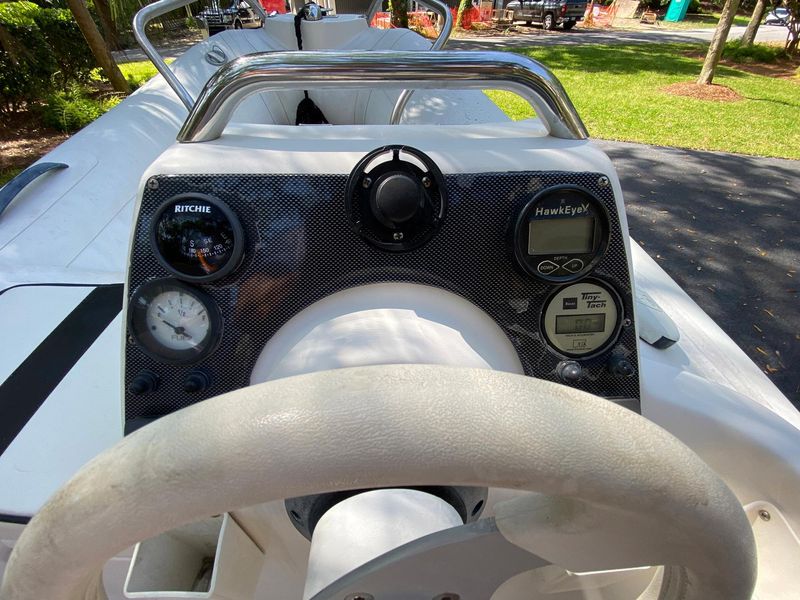

• Yamaha 25hp 4-stroke includes compass, depth finder and tachometer

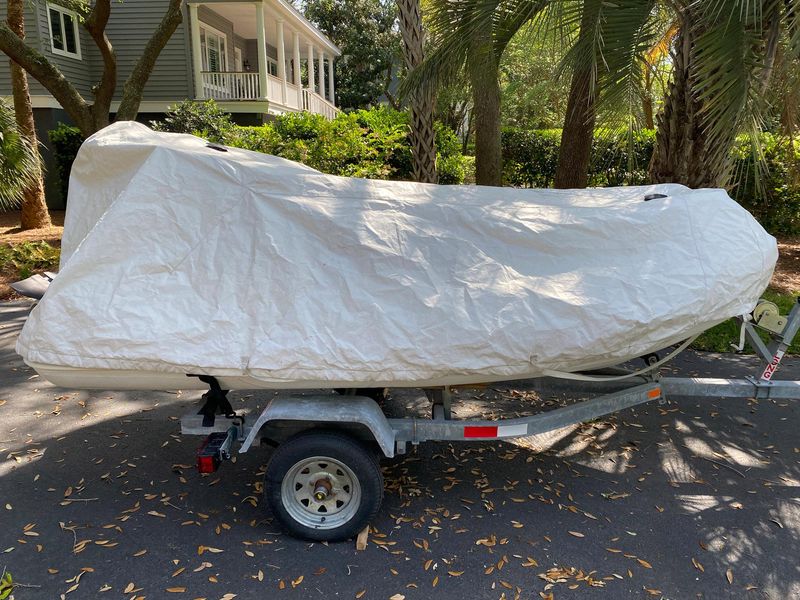

• Dinghy trailer
• Cockpit teak folding chairs and folding table
• Propane BBQ Grill
• Bulkhead art to convey
• Tools Convey
• Abundant spare parts and tools to convey
• Cookware/utensils/tableware to convey
• Bedding/linen to convey
